The grain silo roll forming machine is a device that manufactures roofing sheet for the grain storage and improves the production efficiency effectively. It’s an indispensable piece of gear for granary construction. These panels have three primary strengths going for them: they’re lightweight, durable and weather-resistant — all of which makes them well-suited to grain storage facilities.
Two Primary Types of Steel Grain Silos
Steel grain silos are common l choice for many of your storage requirements. Common options include concrete tanks, carbon steel tanks, warehouses, Glass-Fused- to-Steel and storage silos Steel grain silo is used for the bulk storage of grains or fermented feed known as silage. Both are designed to serve specific storage and handling requirements, each with its special building features and operating attributes:
Flat-Bottom Steel Silos
l Design: These pools have a flat or horizontal base, that can be built on ground level with the foundation or raised concrete structure. Most are narrow, cylindrical buildings that have lidded roofs to keep grain safe from moisture and pests.
l Capacity: They have capacities of large size and even extra-large size (in the 1000 – several thousand tons range), which will be great for bulk, long-term grain storage.
l Unloading: since grain can not be gravity discharged, the use of auxiliary equipment such as bin unloaders (screw conveyors, belt conveyors, sweep augers at bottom) is generally necessary. (Larger models may also include aeration systems to keep the grain dry and prevent it from spoiling.)
What Is It: A motorized machine that uses the shockwave of a big explosion to break stored grain loose from things like bins or silos so it can be sold and then exploded/toasted/dried etc.Other Uses For Explosive Actuators: Soil science, geophysics, miningWhere You See Them:- Commercial grain depots- Large-scale farms- Food processing plants where you store tons (literally) of grains for extended periods (months-to-years).

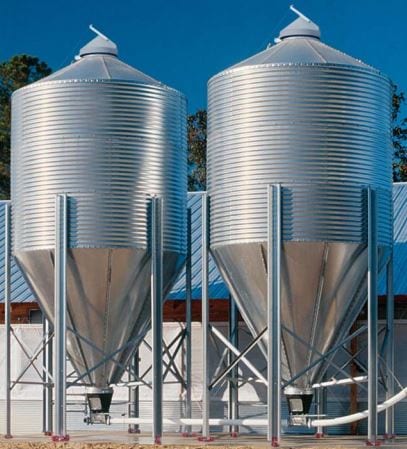

Cone-Bottom Steel Silos
l Composition: They have a conical base with a relatively small up-sloped cone and an outlet at the center. Depending on the model, the cone is welded or bolted to the silo body, provides a smooth grain discharge.
l Capacity: They have a large to very large storage capacity (from a few thousand to tens of thousands of tonnes), hence ideally suited for the bulk, medium- or long-term storage of grain.
l Unloading System: Utilizes material weight for self-unloading — grain simply slides down the cone face directly to a discharge opening with no need for sweep augers or other unloading systems. Small augers are frequently used as a way to move grain from the port to downstream equipment, such as trucks or processing lines.
l Best For: Smaller operations including farms, feed mills or on-farm grain processing facilities that require the ability to easily and quickly load grain (e.g., daily mixing feeds or small/batch handling). They’re great for the storage of high-moisture grains that need to be turned frequently or they’ll mold.

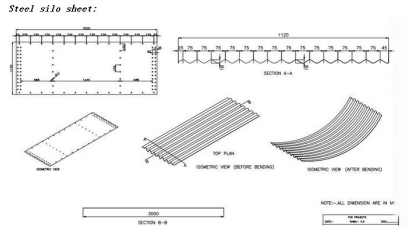

Common Specifications
1. Thickness Specification
2. Corrugation Profile
3. Dimension Specification
A silo corrugated panel roll forming machine
A silo corrugated panel roll forming machine is specialized equipment used to produce corrugated metal panels, typically for the construction of steel silos. These machines work by shaping continuous lengths of metal sheets into curved or corrugated profiles. The corrugated panels provide strength and durability, ideal for storing bulk materials such as grain, concrete, and minerals.
The Components of Grain Storage Silos Roll Forming Machine

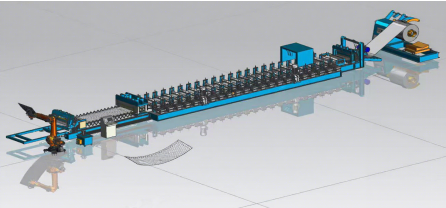

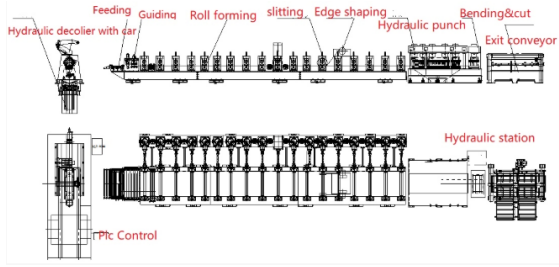

grain silo panel making roll forming machine process

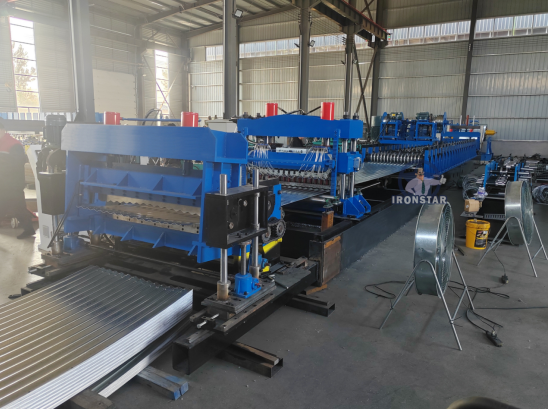

This production line consists of hydraulic decoiler with car, leveling feeder, flat shearing machine, slitting mechanism, edge-receiving machine, roll forming machine, hydraulic punching machine, crimping machine, hydraulic bending and shearing machine, Exit conveyor, as well as hydraulic system, electronic control system and other components.
Hydraulic Decoiler→Feeding and Guiding→Roll forming (Edge shaping, slitting and winding)→Hydraulic Punching→Bending→Cutting→Exit conveyor

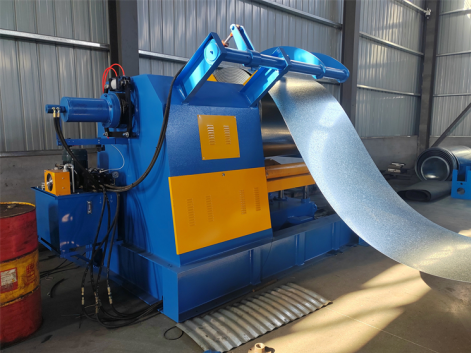

Decoiler: 10-ton hydraulic automatic uncoiler
Function: Smooth and safe uncoiling of coils, automatic working

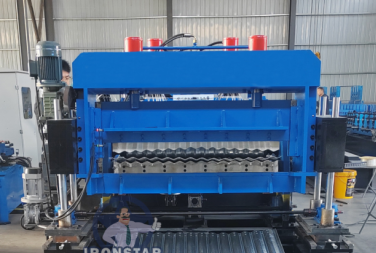

Leveller And Roll forming machine
Function: cold roll forming and correction of sheet metal to make it into a wavy straight plate

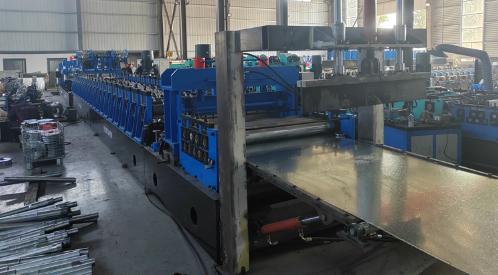

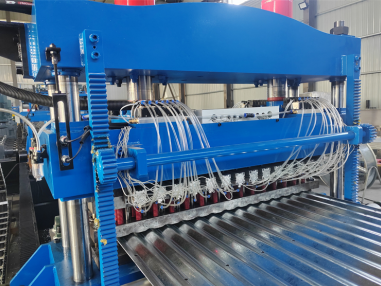

Punching system: Self-made hydraulic integral punching mechanism, including large frame, guide column, hydraulic drive, profiling punching plate and punch die, unloading device, etc.
Function: Continuous and one-time punching of the whole plate (single finished product length)
Silo Shearing Machine

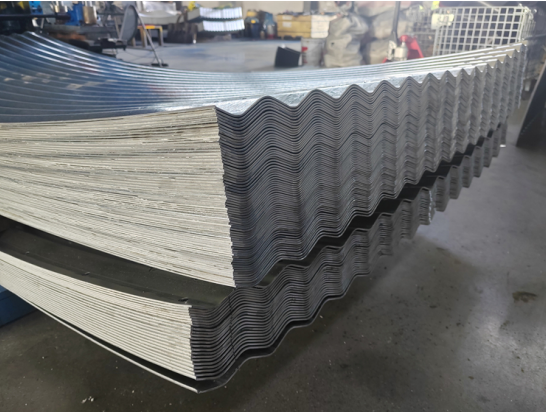

Function: fixed-length positioning shearing, arc-shaped warehouse board finished product after shearing.

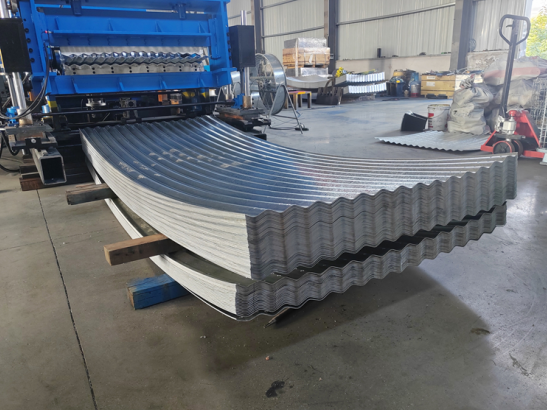

Product In-Situ Photo
Product Detail
Steel silo forming machines from TIANJIN IRONSTAR are widely utilized across sectors like grain storage and cement storage. Boasting high efficiency and full automation, these machines streamline material handling, cut down labor expenses, and boost overall operational productivity. As a seasoned local manufacturer specializing in silo forming equipment, TIANJIN IRONSTAR is capable of developing tailored steel silo production lines that align with your specific demands and on-market application scenarios.
